1. Introduction
The conversion of radio waves to optical waves with higher frequencies enables one to transmit the radio waves through optical fiber with very low losses. This conversion provides access to a set of existing quantum optics capabilities [1]. On the other hand, the role of mechanical displacement has attracted a lot of attention in many fields [2]. The electrical drive of moving parts in optical cavities or optical waveguides can be used to adjust the phase or frequency of the corresponding optical field to create an effective electro-optical interaction. This interactive interaction can be performed in two ways. The force exerted by light, i.e., the radiation pressure created by a light beam that is reflected by a mirror may cause mechanical displacement; conversely, the displacement may induce voltage and current in a piezoelectric material or a capacitive sensor [3]. The combination of optical, electronic, and mechanical capabilities, along with the use of mechanical displacement characteristics, provides new applications from the electrical tuning of optical and mechanical devices to the bidirectional conversion of microwave and optical quantum signals. By combining all the abovementioned capabilities, electro-optomechanical systems enable one to convert low-frequency electrical signals into much higher frequency optical signals. This conversion process provides very important applications in astronomy, medical imaging, navigation, and classical as well as quantum communication. For instance, it enables modern communication networks to use both the strengths of electrical circuits and optical connections, and thus information networks can be tuned in size and complexity [1, 3].
Such systems consist, in general, of two electrical and optomechanical subsystems, wherein by combining electromechanical and optomechanical technologies, a mechanical resonator is simultaneously coupled to both the electrical circuit and the optical cavity. These simultaneous connections lead to the flowing of the radio signal through the mechanical resonator, which appears as light waves [3–5]. Several parameters can be taken into consideration to investigate electro-optomechanical systems as performance indicators of the system. In particular, the effect of dissipation on the system performance is one of the important issues that particularly affects its efficiency. Recently, in a pioneering paper, considering an electro-optomechanical system, the effect of dissipation has been taken into account, using a phenomenological approach [5]. However, another candidate to investigate the effect of dissipation is to use of the time-dependent Hamiltonian known as the Caldirola [6]–Kanai [7] (CK) Hamiltonian. In fact, briefly, the CK Hamiltonian has been used to describe the dissipative harmonic oscillator system (with exponentially increasing mass $m\left(t\right)={m}_{0}{{\rm{e}}}^{\gamma t}$). Lewis and Riesenfeld [8, 9] using the CK Hamiltonian have introduced an invariant operator in order to treat time-dependent Hamiltonian systems. Shortly after, this approach became a very useful tool in revealing the quantum theory of these systems [10–16]. Denisova and Horsthemke investigated the statistical properties of damped quantum particles using the CK method and presented a new method for solving the time-dependent Schrödinger equation [10]. Um et al showed that the path integral approach yields the exact quantum theory of the CK Hamiltonian without violating the Heisenberg uncertainty principle, based on which the authors presented exact quantum theories for various dissipative harmonic oscillators [11]. Choia and Yeon have studied the coherent states of an inverted CK oscillator with time-dependent singular potentials using the constant operator method and the Lie algebra approach [12]. Recently, Choi investigated the quantized energy for the CK Hamiltonian systems in coherent states, based on constant operator theory [15]. Sanz et al presented a Bohemian analysis of friction dynamics to achieve how a hypothetical and purely quantum viscous medium acts on a wave packet from a hydrodynamic quantum point of view [16].
In this paper, we use the CK Hamiltonian approach in the considered electro-optomechanical system. The results of investigating the performance of the system under the influence of loss with the aforementioned Hamiltonian CK approach show that, in general, the results are logical, analytical, and more reliable than considering the effect of loss with the phenomenological method. For instance, with our method, it is possible to analyze the performance of the system due to the change of real loss components in the system (membrane mass, resistance, and inductor inductance), a task that is not so clearly possible in the phenomenological method. While we compare our obtained results with the outcomes of [5] in general, it is also noticeable that, in the continuation of the paper we extract a relationship for the system efficiency depending on the mechanical and electrical bare susceptibilities (and consequently the main loss components) of the system. Accordingly, we are able to analyze the efficiency of the system, in which the appropriate supply voltage range for efficiency is also specified (10–160 V). In addition, based on our numerical results, in order to have enough efficiency, the value of the electrical circuit resistance of the system should be less than 25 ω, and by reducing it from this value, the efficiency can be increased.
This paper is organized as follows. In the next section, a general description of the electro-optomechanical system is discussed. Section 3 deals with the CK dissipative electro-optomechanical system. Then, the performance indicators of our dissipative electro-optomechanical system are compared with the case with the phenomenological approach, and finally, conclusions are drawn in the final section.
2. A brief review of electro-optomechanical systems
The electro-optomechanical system generally consists of two electromagnetic oscillators, one in the optical frequency and the other in the microwave frequency, which share a mechanical oscillator. The mechanical oscillator consists of a thin silicon nitride membrane that can vibrate (figure 1). The optical oscillator consists of a Fabry–Perot cavity with a variable capacitor inside it. The conversion of an electromechanical signal into an optical signal is done by the dual role of the capacitor, which is not only an element in the electrical circuit but also plays the role of a movable mirror in the optical cavity (constructing an optomechanical system). As is shown in figure 1, the capacitor $C\left(x\right),$ consists of a membrane plate that can oscillate (determined by $x$ measured from its equilibrium position), while another plate is fixed. The movable plate of the capacitor (the membrane) receives the optical beam radiation pressure. Therefore, the value of the capacitance, denoted by $C$ in the optomechanical equilibrium state, transforms to $C\left(x\right)$ in the electro-optomechanical state. The vibrations of the membrane and the reciprocation of the light wave move in the same direction, and thus, the resonance frequency of the optical cavity is modulated [17, 18]. This membrane is covered with a thin layer of niobium (which is a superconductor at temperatures below 9 K) that is part of the capacitor in a magnetic circuit and forms a microwave resonator [17–19].
Figure 1. Schematics of the electro-optomechanical system: the movement of light in the cavity is in the same line with the oscillation of the membrane (the upper plate of the capacitor ${C}_{m}$). The displacement of the membrane transforms into a phase shift of the laser beam reflected from the membrane. The membrane capacitor is part of the LC circuit, which is tuned with the mechanical resonance frequency by adjusting a capacitor ${C}_{0}.$ The bias voltage, ${V}_{{\rm{dc}}},$ couples the LC circuit to the movement of the membrane. The circuit is driven by a voltage, ${V}_{s},$ which can be injected through the coupling port 1 or taken by the inductor from ambient radio frequency (RF) radiation. |
Recently, Bagci et al presented an electro-optomechanical system capable of receiving low-frequency electromagnetic signals and converting them into optical signals (with high frequencies) [5]. This system is one of the most sensitive electro-optomechanical systems in detecting, receiving, and converting low- to high-frequency signals. The model is described in figure 1. This system consists of optoelectrical as well as optomechanical subsystems. The vibrating membrane forms the oscillating plate of a variable capacitor coupled to an electrical resonant circuit. By placing the variable capacitor inside an optical cavity and applying a voltage of less than 10 V to the electric circuit, a strong coupling between the voltage fluctuations in the electric resonance circuit and the displacement of the membrane can be induced. At the same time, the membrane displacement is coupled to the light reflected from its surface. The movement of the membrane leads to a phase change in the light passing through it. In fact, the membrane oscillations, which are produced by applying an electrical signal, appear as an optical phase change with which a reasonable quantum sensitivity can be detected. The capacitance ${C}_{m}\left(x\right),$ depends on the distance between the membrane electrodes, $d+x,$ and its dielectric constant. Considering the adjustment capacitor ${C}_{0}$ in the electric frequency circuit, the total capacity of the capacitor is equal to $C\left(x\right)={C}_{0}+{C}_{m}\left(x\right),$ where ${C}_{m}\left(x\right)\,=\varepsilon {\varepsilon }_{o}\tfrac{A}{d+x},$ with $A$ is the area of the capacitor electrode, $d$ is the distance between the capacitor plates, and $x$ is the displacement of the membrane.
The role of the optical cavity is to make the Hamiltonian of the whole system dependent on $C\left(x\right)$ by the effect of the radiation pressure of the beam. Therefore, considering the system components, i.e., inductive-capacitive part and mechanical synchronized oscillator, the Hamiltonian of the whole system is expressed as [5, 20]1 ) while the mechanical dissipation rate of the membrane (${{\rm{\Gamma }}}_{m}$) and the electrical dissipation rate of the resonant circuit (${{\rm{\Gamma }}}_{{\rm{LC}}}$) are added phenomenologically to the equations of motion [5].
$\begin{eqnarray}H=\displaystyle \frac{{\phi }^{2}}{2L}+\displaystyle \frac{{p}^{2}}{2m}+\displaystyle \frac{m{{\rm{\Omega }}}_{m}^{2}{x}^{2}}{2}+\displaystyle \frac{{q}^{2}}{2C\left(x\right)}-q{V}_{{\rm{dc}}},\end{eqnarray}$
where $\phi $ is the inductor flux, $q$ is the charge of the capacitor in the electric circuit, ${{\rm{\Omega }}}_{m}$ is the membrane oscillation frequency, $L$ is the self-inductance coefficient, and ${V}_{\mathrm{dc}}$ is the supply voltage of the electric circuit. Also, variables $x$ and $p$ show the position and momentum of the membrane with effective mass $m,$ respectively. The membrane capacitor is part of the LC circuit, which is tuned with the mechanical oscillation frequency using a tuning capacitor, ${C}_{0}.$ The supply voltage, ${V}_{{\rm{dc}}},$ couples the LC circuit to the movement of the membrane. The associated equations of motion of the above electro-optomechanical system are introduced using Langevin–Hamiltonian equation (3. Electro-optomechanical CK dissipative system
As we previously discussed, the purpose of our paper is to consider the CK Hamiltonian [6–9] in the description of the dissipative electro-optomechanical system [5]. This type of Hamiltonian has been frequently used in the literature [10–16]. In this regard, one-dimensional dissipative motion of a particle with mass $m$ under the restoring and frictional forces has been introduced considering $m\left(t\right)={m}_{0}{{\rm{e}}}^{\gamma t},$ i.e.,2 ) and (3 ), the total Hamiltonian of the entire dissipative electro-optomechanical system can be written as below,18 )–(21 ), respectively, results in
$\begin{eqnarray}{H}_{{\rm{Mech}}}\left(t\right)={{\rm{e}}}^{-\gamma t}\displaystyle \frac{{p}^{2}}{2{m}_{0}}+\displaystyle \frac{{m}_{0}{{\rm{\Omega }}}_{m}^{2}{x}^{2}}{2}{{\rm{e}}}^{\gamma t},\end{eqnarray}$
known as the CK Hamiltonian. Here, ${m}_{0}$ and $\gamma $ are the initial mass of the mechanical oscillator and a positive constant parameter, respectively. By setting $\gamma =0,$ the non-dissipative Hamiltonian of the motion is readily obtained. One of the realizations of this system is seen in the resistance-inductance-capacitance circuit, which is more realistic than the LC circuit [21–23]. The Hamiltonian of a non-dissipative LC electric circuit under a time-dependent potential $V(t)$ is of the form ${H}_{{\rm{LC}}}\left(t\right)=\tfrac{{\phi }^{2}}{2L}+\tfrac{{q}^{2}}{2C}+qV\left(t\right),$ where $\phi $ and $q$ satisfy the commutation relation $[\phi ,q]={\rm{i}}\hslash .$ Based on the CK approach, the Hamiltonian of the LC circuit including the resistance $R$ can be written as below, $\begin{eqnarray}{H}_{{\rm{LC}}}\left(t\right)=\displaystyle \frac{{\phi }^{2}}{2L}{{\rm{e}}}^{-\displaystyle \frac{R}{L}t}+\displaystyle \frac{{q}^{2}}{2C}{{\rm{e}}}^{\displaystyle \frac{R}{L}t}+qV.\end{eqnarray}$
Therefore, using equations ( $\begin{eqnarray}\begin{array}{l}H\left(t\right)=\displaystyle \frac{{\phi }^{2}}{2L}{{\rm{e}}}^{-\displaystyle \frac{R}{L}t}+\displaystyle \frac{{p}^{2}}{2{m}_{0}}{{\rm{e}}}^{-\gamma t}\\ \,+\,\displaystyle \frac{{m}_{0}{{\rm{\Omega }}}_{m}^{2}{x}^{2}}{2}{{\rm{e}}}^{\gamma t}+\displaystyle \frac{{q}^{2}}{2C\left(x\right)}{{\rm{e}}}^{\displaystyle \frac{R}{L}t}+qV.\end{array}\end{eqnarray}$
The Langevin equations of motion can then be readily obtained as $\begin{eqnarray}\dot{x}=\displaystyle \frac{p}{{m}_{0}}{{\rm{e}}}^{-\gamma t},\end{eqnarray}$
$\begin{eqnarray}\begin{array}{l}\dot{p}=-{m}_{0}{{\rm{\Omega }}}_{m}^{2}{{\rm{e}}}^{\gamma t}x\\ \,-\,\displaystyle \frac{{q}^{2}}{2}{{\rm{e}}}^{\displaystyle \frac{R}{L}t}\displaystyle \frac{\partial }{\partial x}\left(\displaystyle \frac{1}{C\left(x\right)}{| }_{x=\bar{x}}\right)-F,\end{array}\end{eqnarray}$
$\begin{eqnarray}\dot{q}=\displaystyle \frac{\phi }{L}{{\rm{e}}}^{-\displaystyle \frac{R}{L}t},\end{eqnarray}$
$\begin{eqnarray}\dot{\phi }=-\displaystyle \frac{q}{C\left(x\right)}{{\rm{e}}}^{\displaystyle \frac{R}{L}t}+V.\end{eqnarray}$
By linearizing the above equations of motion around the equilibrium point ($\bar{x},\overline{p,}\bar{q},\bar{\phi }$), one arrives at the following relations: $\begin{eqnarray}\begin{array}{l}{m}_{0}{{\rm{\Omega }}}_{m}^{2}\bar{x}{{\rm{e}}}^{\gamma t}=-\displaystyle \frac{{q}^{-2}}{2}{{\rm{e}}}^{\displaystyle \frac{R}{L}t}\displaystyle \frac{\partial }{\partial x}\left(\displaystyle \frac{1}{c\left(x\right)}\right){\Space{0ex}{3.10ex}{0ex}| }_{x=\bar{x}}\\ \,=\,\displaystyle \frac{{q}^{-2}}{2}{{\rm{e}}}^{\displaystyle \frac{R}{L}t}\displaystyle \frac{c^{\prime} \left(\bar{x}\right)}{{c}^{2}\left(\bar{x}\right)},\end{array}\end{eqnarray}$
$\begin{eqnarray}\bar{q}={{\rm{e}}}^{-\displaystyle \frac{R}{L}t}{V}_{{\rm{dc}}}C\left(\bar{x}\right),\end{eqnarray}$
$\begin{eqnarray}\bar{p}=\bar{\phi }=0.\end{eqnarray}$
For small fluctuations (assuming that the system is in equilibrium), the equations of motion can be rewritten as $\begin{eqnarray}\delta \dot{x}\left(t\right)=\displaystyle \frac{\delta p\left(t\right)}{{m}_{0}}{{\rm{e}}}^{-\gamma t},\end{eqnarray}$
$\begin{eqnarray}\begin{array}{l}{\rm{\delta }}\dot{p}\left(t\right)=\displaystyle \frac{\gamma }{2}{\bar{q}}^{2}{{\rm{e}}}^{\displaystyle \frac{R}{L}t}\displaystyle \frac{\partial }{\partial x}\left(\displaystyle \frac{1}{C\left(x\right)}{| }_{x=\bar{x}}\right)\delta t\\ \,-\,{m}_{0}{{\rm{\Omega }}}_{m}^{2}{{\rm{e}}}^{\gamma t}\delta x\left(t\right)-{{\rm{e}}}^{\displaystyle \frac{R}{L}t}G\delta q\left(t\right)\\ \,-\,2m{{\rm{\Omega }}}_{m}{\rm{\Delta }}{{\rm{\Omega }}}_{m}{{\rm{e}}}^{\displaystyle \frac{R}{L}t}\delta x\left(t\right)\\ \,-\,\displaystyle \frac{{\bar{q}}^{2}}{2}\displaystyle \frac{R}{L}{{\rm{e}}}^{\displaystyle \frac{R}{L}t}\displaystyle \frac{\partial }{\partial x}\left(\displaystyle \frac{1}{C\left(x\right)}{| }_{x=\bar{x}}\right)\delta t,\end{array}\end{eqnarray}$
$\begin{eqnarray}\delta \dot{q}\left(t\right)=\displaystyle \frac{\delta \phi \left(t\right)}{L}{{\rm{e}}}^{-\displaystyle \frac{R}{L}t},\end{eqnarray}$
$\begin{eqnarray}\begin{array}{l}\delta \dot{\phi }\left(t\right)=-\displaystyle \frac{\delta q\left(t\right)}{C\left(\bar{x}\right)}{{\rm{e}}}^{-\displaystyle \frac{R}{L}t}-\displaystyle \frac{\bar{q}}{C\left(\bar{x}\right)}\displaystyle \frac{R}{L}{{\rm{e}}}^{\displaystyle \frac{R}{L}t}\delta t\\ \,-\,\bar{q}{{\rm{e}}}^{-\displaystyle \frac{R}{L}t}\displaystyle \frac{\partial }{\partial x}\left(\displaystyle \frac{1}{C\left(x\right)}{| }_{x=\bar{x}}\right)\delta x\left(t\right)+\delta V\left(t\right),\end{array}\end{eqnarray}$
where the coupling parameter and the frequency shift have been respectively defined as $\begin{eqnarray}G=\bar{q}\displaystyle \frac{\partial }{\partial x}\left(\displaystyle \frac{1}{C(x)}{| }_{x=\bar{x}}\right)=-\bar{q}\displaystyle \frac{C^{\prime} \left(\bar{x}\right)}{C{\left(\bar{x}\right)}^{2}},\end{eqnarray}$
$\begin{eqnarray}{\rm{\Delta }}{{\rm{\Omega }}}_{m}=\displaystyle \frac{{\bar{q}}^{2}}{4{{\rm{\Omega }}}_{m}m}\displaystyle \frac{{\partial }^{2}}{\partial {x}^{2}}\left(\displaystyle \frac{1}{C\left(x\right)}{| }_{x=\bar{x}}\right).\end{eqnarray}$
Now, assuming the absorption of frequency shift and using the Laplace transform technique, the equations of motion can be transformed into the frequency domain arrives one at $\begin{eqnarray}S\delta x\left(s\right)=\displaystyle \frac{1}{{m}_{0}}\delta p\left(s+\gamma \right),\end{eqnarray}$
$\begin{eqnarray}S\delta p\left(s\right)=-{m}_{0}{{\rm{\Omega }}}_{m}^{2}\left(s-\gamma \right)-G\delta q\left(s-\displaystyle \frac{R}{L}\right),\end{eqnarray}$
$\begin{eqnarray}S\delta q\left(s\right)=\displaystyle \frac{1}{L}\delta \phi \left(s+\displaystyle \frac{R}{L}\right),\end{eqnarray}$
$\begin{eqnarray}S\delta \phi \left(s\right)=-\displaystyle \frac{1}{C}\delta q\left(s-\displaystyle \frac{R}{L}\right)-G\delta x\left(s-\displaystyle \frac{R}{L}\right),\end{eqnarray}$
where $s=-{\rm{i}}{\rm{\Omega }},$ and ${\rm{\Omega }}$ is the excitation frequency of the signal. Our purpose at this stage is to calculate the response of the system to the excitations through driving force or voltage. For convenience, we investigate the system performance by evaluating the mechanical and electrical bare susceptibilities using equations ( $\begin{eqnarray}\begin{array}{l}{X}_{m}\left({\rm{\Omega }}\right)=\left(\displaystyle \frac{1}{{m}_{0}\left({{\rm{\Omega }}}_{m}^{2}-{{\rm{\Omega }}}^{2}-i{\rm{\Omega }}\gamma \right)}\right)\left(\displaystyle \frac{{\left({\rm{i}}{\rm{\Omega }}-\gamma \right)}^{2}+{{\rm{\Omega }}}_{m}^{2}}{{{\rm{\Omega }}}_{m}^{2}-{{\rm{\Omega }}}^{2}}\right)\\ \,\times \,\left(\displaystyle \frac{{{\rm{\Omega }}}_{LC}^{2}-{{\rm{\Omega }}}^{2}}{{\left({\rm{i}}{\rm{\Omega }}-\displaystyle \frac{R}{L}\right)}^{2}+{{\rm{\Omega }}}_{{\rm{LC}}}^{2}}\right),\end{array}\end{eqnarray}$
$\begin{eqnarray}{X}_{LC}\left({\rm{\Omega }}\right)=\displaystyle \frac{1}{L\left({{\rm{\Omega }}}_{{\rm{LC}}}^{2}-{{\rm{\Omega }}}^{2}+{\rm{i}}{\rm{\Omega }}\displaystyle \frac{R}{L}\right)},\end{eqnarray}$
where ${{\rm{\Omega }}}_{{\rm{LC}}}$ is defined as LC circuit frequency.4. Evaluation of the system performance indicators
Using the above-obtained equations, we are now in a position to investigate the performance of the system.
4.1. The voltage across the capacitor
The voltage of the two ends of the capacitor reads as ${V}_{c}=\tfrac{q}{c\left(x\right)}.$ From this relation, and using equations (16 ) and (23 ) we can write18 )–(21 ), we obtain25 ) into (24 ), we arrive at
$\begin{eqnarray}\begin{array}{l}\delta {V}_{c}=\displaystyle \frac{\delta q}{c\left(\bar{x}\right)}+\bar{q}\displaystyle \frac{\partial }{\partial x}\left(\displaystyle \frac{1}{C\left(x\right)}{\Space{0ex}{3.10ex}{0ex}| }_{x=\bar{x}}\right)\delta x\\ \,=\,\left(\displaystyle \frac{1}{c\left(\bar{x}\right)}-{G}^{2}{X}_{m}\left({\rm{\Omega }}\right)\right)\delta q\left({\rm{\Omega }}\right),\end{array}\end{eqnarray}$
in which we have defined ${X}_{m}\left({\rm{\Omega }}\right)=\tfrac{\delta x\left({\rm{\Omega }}\right)}{\delta q\left({\rm{\Omega }}\right)}.$ On the other hand, according to equations ( $\begin{eqnarray}\delta q\left({\rm{\Omega }}\right)={\left({X}_{{\rm{LC}}}^{-1}\left({\rm{\Omega }}\right)-{G}^{2}{X}_{m}\left({\rm{\Omega }}\right)\right)}^{-1}\delta {V}_{s}\left({\rm{\Omega }}\right),\end{eqnarray}$
where ${V}_{s}$ is the excitation voltage of the electric circuit. By inserting ( $\begin{eqnarray}\begin{array}{l}\delta {V}_{c}\left({\rm{\Omega }}\right)=\left(\displaystyle \frac{1}{c\left(\bar{x}\right)}-{G}^{2}{X}_{m}\left({\rm{\Omega }}\right)\right)\\ \,\times \,{\left({X}_{{\rm{LC}}}^{-1}\left({\rm{\Omega }}\right)-{G}^{2}{X}_{m}\left({\rm{\Omega }}\right)\right)}^{-1}\delta {V}_{s}\left({\rm{\Omega }}\right).\end{array}\end{eqnarray}$
From the ratio ${\rm{\delta }}{V}_{c}/{\rm{\delta }}{V}_{s}$ that has been plotted in figure 2 the transition from mechanical-induced transparency to normal mode splitting can be observed. The same realization was obtained with the same data, in [5] with the help of the effect of phenomenological dissipation as follows. Comparing figure 2 and what the authors have done in [5] clearly shows the different effects of the CK dissipation approach compared with phenomenological dissipation.
Figure 2. The transition from mechanical-induced transparency to normal mode splitting, in the voltage across the capacitor (with CK dissipation). The chosen parameters are as $C$ = 72 pF, $m$ = 28 ng, ${{\rm{\Omega }}}_{m}={\rm{\Omega }}=2\pi \,* \,722\,{\rm{kHz}},$ $\gamma =2\pi \,* \,1.5\,{\rm{Hz}},$ $R$ = 23ω, $L$ = 675 μH and $G$ = {0, 5, 50, 500} kV m−1, respectively, for {red, blue, black, green} curves. |
Based on figure 2, as $R$ increases, (i) the effect of inductive transparency decreases in low couplings, (ii) in different coupling coefficients, the range of the ratio ${\rm{\delta }}{V}_{c}/{\rm{\delta }}{V}_{s}$ decreases, except for the coupling coefficient $G$ = 50 kV m−1 which is greatly increased with the increase of $R.$
4.2. Membrane displacements and optical phase shift
The phase shift created on the light field and reflected from the membrane is defined via the relation ${\delta }{\varphi }_{{\rm{mem}}}=2k\delta x,$ where $k=2\pi /\lambda $ is the wave number of light. From (18 )–(21 ), we also have
$\begin{eqnarray}{X}_{m}^{-1}\left({\rm{\Omega }}\right)\delta x\left({\rm{\Omega }}\right)=-G\delta q\left({\rm{\Omega }}\right)-\delta {F}_{{\rm{th}}}\left({\rm{\Omega }}\right),\end{eqnarray}$
$\begin{eqnarray}\delta q\left({\rm{\Omega }}\right)=-G{X}_{{\rm{LC}}}\left({\rm{\Omega }}\right)\delta x\left({\rm{\Omega }}\right)+{X}_{{\rm{LC}}}\left({\rm{\Omega }}\right)\delta V\left({\rm{\Omega }}\right).\end{eqnarray}$
Inserting equation (28 ) into equation (27 ) one obtains
$\begin{eqnarray}\begin{array}{l}\delta x\left({\rm{\Omega }}\right)={\left({X}_{m}^{-1}\left({\rm{\Omega }}\right)-{G}^{2}{X}_{{\rm{LC}}}\left({\rm{\Omega }}\right)\right)}^{-1}\\ \,\times \,\left(-\delta {F}_{{\rm{th}}}\left({\rm{\Omega }}\right)-G{X}_{{\rm{LC}}}\left({\rm{\Omega }}\right)\delta V\left({\rm{\Omega }}\right)\right).\end{array}\end{eqnarray}$
By the latter relation, the membrane displacement $\delta x\left({\rm{\Omega }}\right)$ depends on the variations of the electrical supply voltage of the system, $\delta V\left({\rm{\Omega }}\right).$ Now, we pay attention to the amount of displacement of the membrane in the presence of dissipation (figure 3). Keeping in mind the relation ${\delta }{\varphi }_{{\rm{mem}}}=2k\delta x,$ it is clearly seen that this is a criterion of the optical phase change. In fact, considering equation (29 ) and using the relation $G=a{V}_{{\rm{dc}}}$ where $a=\tfrac{C^{\prime} \left(\bar{x}\right)}{C\left(\bar{x}\right)},$ it is possible to compare the displacement of the membrane in terms of system supply voltage via the two methods of CK and phenomenological dissipations. As can be seen from figure 3, in the CK dissipation method, by choosing the appropriate values for the dissipation components, in addition to a more accurate determination of the membrane displacement, the membrane placement can be easily adjusted. This is while in the phenomenological dissipation approach, this task is not easily available.
Figure 3. Membrane displacement: the red continuous diagram refers to phenomenological dissipation (${\unicode{x00413}}_{m}=2\pi \,* \,1.5\,{\rm{Hz}},$ ${\unicode{x00413}}_{{\rm{LC}}}=2\pi \,* \,5.5\,{\rm{k}}\,{\rm{Hz}}$) and the {black dotted, blue dashed, green dotted-dashed} plots are associated with $R$ = {13, 23, 33}ω wherein the CK dissipation has been used. The chosen parameters are as ${C}_{m}(x=0)$ = 0.5 pF, ${V}_{s}$ = 10 nV, $a$ = 55, $L$ = 15 mH, ${{\rm{\Omega }}}_{m}={\rm{\Omega }}=2\pi \,* \,1.5\,{\rm{Hz}}.$ Other parameters are taken as in figure 2. |
Also, with the increase of $R,$ the displacement of the membrane decreases, as a result, the optical phase shift is decreased. In addition, the maximum displacement (and so the optical phase shift) of the membrane occurs at lower supply voltages; moreover, with increasing $R$, the picks of displacement (which has been decreased) move to a bit higher voltages. It is also understood that the dissipation effect of the electromechanical subsystem is much higher than the loss of the optomechanical subsystem, so the loss of the optomechanical system can be negligible compared to the loss of the electromechanical subsystem.
4.3. Electromechanical impedance of the system
The electromechanical subsystem (which includes a variable capacitor, a regulating capacitor, and a dissipative resistor) possesses a specific impedance. The reactance of this subsystem is capacitive, and is created by the physical capacitor that is mechanically adjusted with the circuit components. The reactance of the capacitor simply reads as ${Z}_{{\rm{em}}}\left({\rm{\Omega }}\right)=-{\rm{i}}{X}_{c}{\rm{where}}\,{X}_{c}=\tfrac{1}{{\rm{\Omega }}C}.$ Therefore, ${Z}_{{\rm{em}}}\left({\rm{\Omega }}\right)=-{\rm{i}}\tfrac{1}{{\rm{\Omega }}C}=\tfrac{1}{{\rm{i}}{\rm{\Omega }}C}.$ On the other hand, in general, the current passing through the capacitor is the rate of movement of load changes with respect to time, so, since $V=q/C$ and using equation (24 ), we can write the capacitive reactance of the electromechanical subsystem as follows:
$\begin{eqnarray}{Z}_{{\rm{em}}}\left({\rm{\Omega }}\right)=\displaystyle \frac{1}{{\rm{i}}{\rm{\Omega }}}\left(\displaystyle \frac{1}{C\left(\bar{x}\right)}-{X}_{m}\left({\rm{\Omega }}\right){G}^{2}\right).\end{eqnarray}$
Utilizing the above relation and equation (22 ), we can analyze the capacitor reactance with respect to the variation of the coupling coefficient. The plots in figure 4 show the effect of resistance, as the source loss of the electromechanical subsystem, on the real part of reactance. Also, to be compared with the phenomenological approach we have plotted a corresponding graph (the red one).
Figure 4. The real part of the reactance diagram of the capacitor: the red continuous diagram belongs to the phenomenological dissipation (${\unicode{x00413}}_{m}=2\pi \,* \,20\,{\rm{Hz}}\,$) and the {green dotted-dashed, blue dashed, black dotted} plots are associated with $R$ = {13, 23, 53}ω wherein the CK dissipation has been used. Also, we considered the resonance condition (${{\rm{\Omega }}}_{m}$ = ${\rm{\Omega }}$) for typical parameters $m$ = 36 ng, ${{\rm{\Omega }}}_{m}=2\pi \,* \,700\,{\rm{kHz}},$ ${C}_{m}\left(x=0\right)$ = 0.5 pF. |
As shown in the plots of figure 4, considering the phenomenological dissipation, the dissipation source of the optomechanical plays the main role. With this approach, either by reducing the mechanical damping in lower coupling coefficients or by increasing the coupling coefficient and keeping the mechanical damping constant, the impedance of the system can be increased.
In the event that considering CK dissipation, the main dissipation source of the system originates from the electromechanical subsystem ($R$), and with the decrease of $R,$ the impedance of the system is increased at lower coupling coefficients. It should be emphasized that according to our result, one should not rise the coupling constant (which is not a simple task) for increasing the impedance of the system. Indeed, as is seen with decreasing $R$ one can readily access higher impedance.
The imaginary part of the reactance of the capacitor is exactly the same in both dissipation methods, i.e., using CK and phenomenological dissipation, so we pass it now.
4.4. The efficiency of the system
The efficiency of the system can be defined as follows:
$\begin{eqnarray}\eta =\alpha \left(\displaystyle \frac{\delta {V}_{c}}{\delta {V}_{s}}\right)\left(\displaystyle \frac{\delta {V}_{c}}{\delta q}\right),\end{eqnarray}$
where we have defined $\begin{eqnarray}\alpha =\displaystyle \frac{-\pi {\rm{i}}}{25\lambda c}{\left(\displaystyle \frac{G{X}_{{\rm{LC}}}\left({\rm{\Omega }}\right)}{{X}_{m}^{-1}\left({\rm{\Omega }}\right)-{G}^{2}{X}_{{\rm{LC}}}\left({\rm{\Omega }}\right)}\right)}^{2}.\end{eqnarray}$

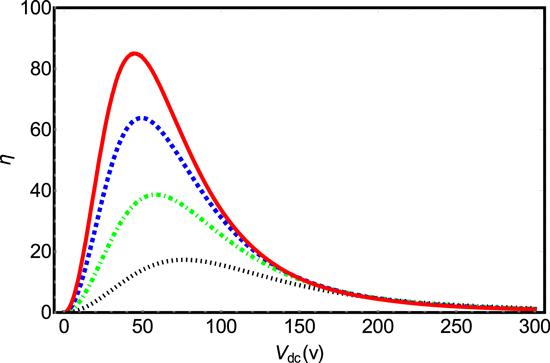

Figure 5. System efficiency diagram in terms of electrical supply voltage changes: The red continuous diagram refers to phenomenological dissipation (${\unicode{x00413}}_{{\rm{LC}}}=2\pi \,* \,5.5\,{\rm{kHz}},$ ${\unicode{x00413}}_{m}=2\pi \,* \,2\,{\rm{Hz}}$) and the {blue dashed, green dotted-dashed, black dotted} plots are associated with $R$ = {5.5, 6.5, 8.5} wherein the CK dissipation has been used. The chosen parameters are as $m$ = 28 ng, $\gamma =$ 0.5, $\lambda $ = 1064 nm, $a$ = 55, ${{\rm{\Omega }}}_{m}={\rm{\Omega }}=2\pi \,* \,690\,{\rm{kHz}},$ $L$ = 1 mH, ${C}_{m}$ (x = 0) = 0.5 pF, ${{\rm{V}}}_{s}=10\,{\rm{nV}},$ $G$ = 50 kV m−1. |
As is seen from figure 5, with increasing $R,$ the efficiency of the system decreases, and maximum efficiency is obtained at higher supply voltages. In addition, the variation of $\gamma $ (membrane damping) does not have a critical effect on the efficiency of the system.
5. Concluding remarks
In summary, we have considered an electro-optomechanical system with CK dissipation by which we aimed to check (i) mechanically induced transparency, (ii) created phase shift in the optical field by moving the membrane, (iii) electromechanical impedance, and (iv) system efficiency. In order to compare the dissipation effects using the CK Hamiltonian approach and the previously phenomenological method, we have used the same parameters as in [5]. In general, logical, analytical, and reliable results are observed in the performance of the system under the influence of the dissipation with the Hamiltonian CK compared with the phenomenological method.
In more detail, with increasing $R$ the following realizations can be observed:
| i | i.The inductive transparency phenomenon (at low coupling values) and the ratio ${\delta }{V}_{c}/{\delta }{V}_{s}$ (at different coupling coefficients) decrease, except at the coupling coefficient $G$ = 50 kV m−1 wherein this ratio strongly increases. |
| ii | ii.The displacement of the membrane is reduced and its maximum occurs at lower supply voltages. Also, the influence of the dissipative electromechanical subsystem on the membrane displacement is much higher than on the dissipative optomechanical subsystem, such that the latter can be ignored compared to the former. |
| iii | iii.In all cases, system impedance decreases at higher coupling coefficients. |
| iv | iv.The system efficiency is reduced, and its maximum can be achieved at higher supply voltages. Also, changing $\gamma $ (membrane damping) does not have a significant effect on the system efficiency. |
To compare the above results with the phenomenological method, it should be stated that the main source of dissipation has arisen from the optomechanical subsystem. Therefore, either by reducing the mechanical damping (at low coupling coefficients) or by increasing the coupling coefficient (by keeping the mechanical damping at a constant value), the impedance of the system can be increased. The imaginary reactance of the capacitor in both the dissipation methods, i.e., CK or phenomenological dissipation methods remains constant.
As an important advantage of our approach, we can refer to the fact that by using the CK Hamiltonian, the performance of the system behavior via the influence of dissipation components can be more easily controlled. This means that the dissipation sources in the CK Hamiltonian approach are more controllable than those of the phenomenological approach.
